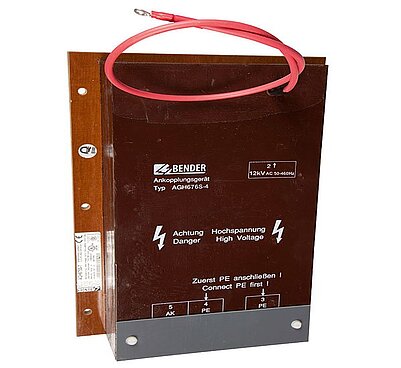

AGH676S-4
- Increase of the ISOMETER® nominal voltage range
- Used with ISOMETER® of the iso685 series
- For medium-voltage applications up to AC 12 kV
The AGH676S-4 is used for coupling the ISOMETER® IR420-D64 to 12 kV-AC systems in offline mode.
Alternatively, the AGH676S-4 can be used in combination with iso685… for 12-kV-AC systems in online mode.
The coupling device must only be used in combination with the ISOMETER®. All device combinations listed above are not suitable for systems containing converters.
- Increase of the ISOMETER® nominal voltage range
- Used with ISOMETER® of the iso685 series
- For medium-voltage applications up to AC 12 kV
The AGH676S-4 is used for coupling the ISOMETER® IR420-D64 to 12 kV-AC systems in offline mode.
Alternatively, the AGH676S-4 can be used in combination with iso685… for 12-kV-AC systems in online mode.
The coupling device must only be used in combination with the ISOMETER®. All device combinations listed above are not suitable for systems containing converters.
AGH676S-4 Variant(s)
| Type | Nominal system voltage Un | Cable length | Art. No. |
|---|---|---|---|
| AGH676S-4 | AC, 3(N)AC 0…12 kV, 50…460 Hz | 2000 mm | B913055 |
Downloads for AGH676S-4
| Name | Category | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| UKCA - AGH | Declarations of Conformity | 122.7 KB | 2023/11/2222.11.2023 | ||
| AGH676S-4 | Manuals | 1.6 MB | EN | 2022/06/0909.06.2022 | D00096 |
| AGH676S-4 | Datasheets | 250.5 KB | EN | 2019/09/1010.09.2019 | D00096 |
