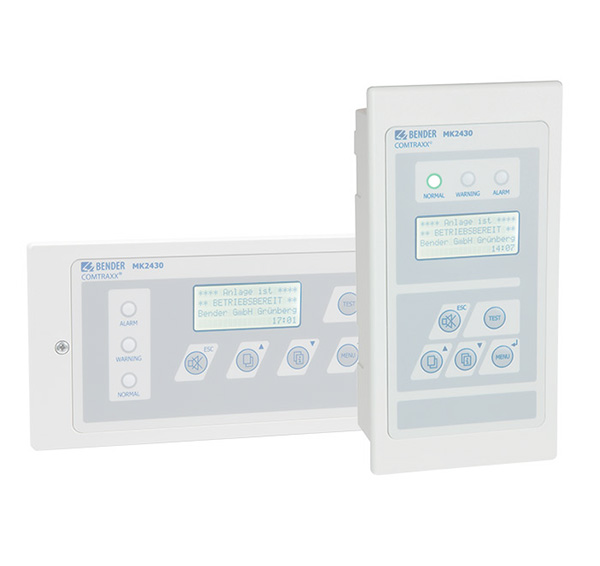

COMTRAXX® MK2430
- Alarm indicator and test combination according to IEC 60364-7-710; DIN VDE 0100-710: 2002-11
- Visual and audible indication of operating status and alarm messages from EDS, RCMS and MEDICS Bender systems as well as from third-party systems
- IT system monitoring equipment can be tested using the programmable test button
The universal remote alarm indicator and test combination MK2430 is designed for visual and audible indication of alarm messages from Bender systems such as EDS, RCMS and MEDICS. In MEDICS® monitoring systems, the MK800 meets the requirements of IEC 60364-7-710 and DIN VDE 0100-710:2002-11 in respect of test functions for IT system monitoring and alarms from changeover modules. The IT system monitoring equipment can be tested using the programmable test button.
The LC text display makes information easy to understand. The connection between the MKs and the changeover and monitoring modules is implemented with bus technology. During normal operation, the MK2430 indicates the readiness for operation of the system. The MK2430-11 features 12 digital inputs allowing messages from third party systems to be recorded and displayed on the MK2430, for example from medical gases or UPS systems.

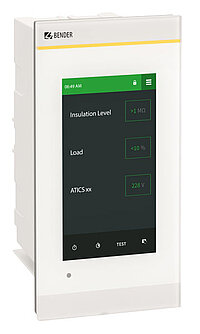

Do you already know our new product generation:
- Alarm indicator and test combination according to IEC 60364-7-710; DIN VDE 0100-710: 2002-11
- Visual and audible indication of operating status and alarm messages from EDS, RCMS and MEDICS Bender systems as well as from third-party systems
- IT system monitoring equipment can be tested using the programmable test button
The universal remote alarm indicator and test combination MK2430 is designed for visual and audible indication of alarm messages from Bender systems such as EDS, RCMS and MEDICS. In MEDICS® monitoring systems, the MK800 meets the requirements of IEC 60364-7-710 and DIN VDE 0100-710:2002-11 in respect of test functions for IT system monitoring and alarms from changeover modules. The IT system monitoring equipment can be tested using the programmable test button.
The LC text display makes information easy to understand. The connection between the MKs and the changeover and monitoring modules is implemented with bus technology. During normal operation, the MK2430 indicates the readiness for operation of the system. The MK2430-11 features 12 digital inputs allowing messages from third party systems to be recorded and displayed on the MK2430, for example from medical gases or UPS systems.
Do you already know our new product generation:
Features
- Display of operating status, warning and alarm messages in accordance with DIN VDE 0100-710, IEC 60364-7-710 and other standards
- Backlit clear LC text display (4 x 20 characters)
- Predefined standard texts in 20 languages
- 200 freely programmable message texts
- Bus technology for easy installation and reduced fire load
- Acoustic alarm with mute function
- Parameter setting via menu (German/English)
- Suitable for flush and surface mounting
- Easy commissioning due to predefined message texts
- 12 digital inputs/1 relay output (MK2430-11 only)
- History memory with real-time clock to store 250 warning and alarm messages
- Easy replacement of MK2418/MK2007
Applications
- Visual and audible indication of alarm messages from EDS, RCMS and MEDICS Bender systems.
- Complies with the requirements of DIN VDE 0100-710 regarding messages from changeover modules and IT system as well as test functions for the IT system monitoring
- During normal operation, the MK2430 indicates the readiness for operation of the system.
- Display and visualisation of operating status, warning and alarm messages
- Indication of measured values
- Operation and parameter setting (setting of threshold values for the purpose of measured value monitoring) of BMS devices (EDS, RCMS)
- The clear text display makes information easy to understand.
- Version MK2430-11 features 12 digital inputs allowing messages from other technical equipment to be recorded and displayed on the MK2430, for example from medical gases or special safety power supply sources (UPS).
COMTRAXX® MK2430 Variant(s)
| Type | Digital inputs/ relay output | Enclosure | Enclosure included in the scope of delivery | Art. No. |
|---|---|---|---|---|
| MK2430-11 | 12/1 | Flush-mounting | x | B95100001 |
| MK2430-12 | -- | Flush-mounting | x | B95100002 |
| MK2430H-12 | -- | Flush-mounting, horizontal mounting | -- | B95100024 |
Optional Accessories for COMTRAXX® MK2430
| Type | Type designation | Art. No. |
|---|---|---|
| TMK-Set V4.xx | software | as Internet download |
| TMK-History V3.xx | software | as Internet download |
| USB driver software for MK2430, MK800 and TM800 | software | as Internet download |
| MK2430-mounting kit, complete | B95101000 | |
| Flush-mounting enclosure | B923710 |
Downloads for COMTRAXX® MK2430
| Name | Category | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| MK2430 | CE Declarations of Conformity | 84.7 KB | 2022/08/1212.08.2022 | ||
| MK2430 | Quickstarts | 847.1 KB | EN | 2024/01/1616.01.2024 | D00129 |
| MK2430 | Manuals | 2.6 MB | EN | 2019/10/0101.10.2019 | D00129 |
| MK2430 | Datasheets | 396.1 KB | EN | 2023/07/0606.07.2023 | D00129 |
| TMK-Set (V4.25) | Software | 5.8 MB | 2019/05/1313.05.2019 | ||
| TMK-History | Software | 2.6 MB | 2019/05/1313.05.2019 | ||
| TMK USB Driver V6.5 Windows XP/2003/Vista(32/64)/7(32/64) | Software | 3.3 MB | 2019/05/1313.05.2019 |
